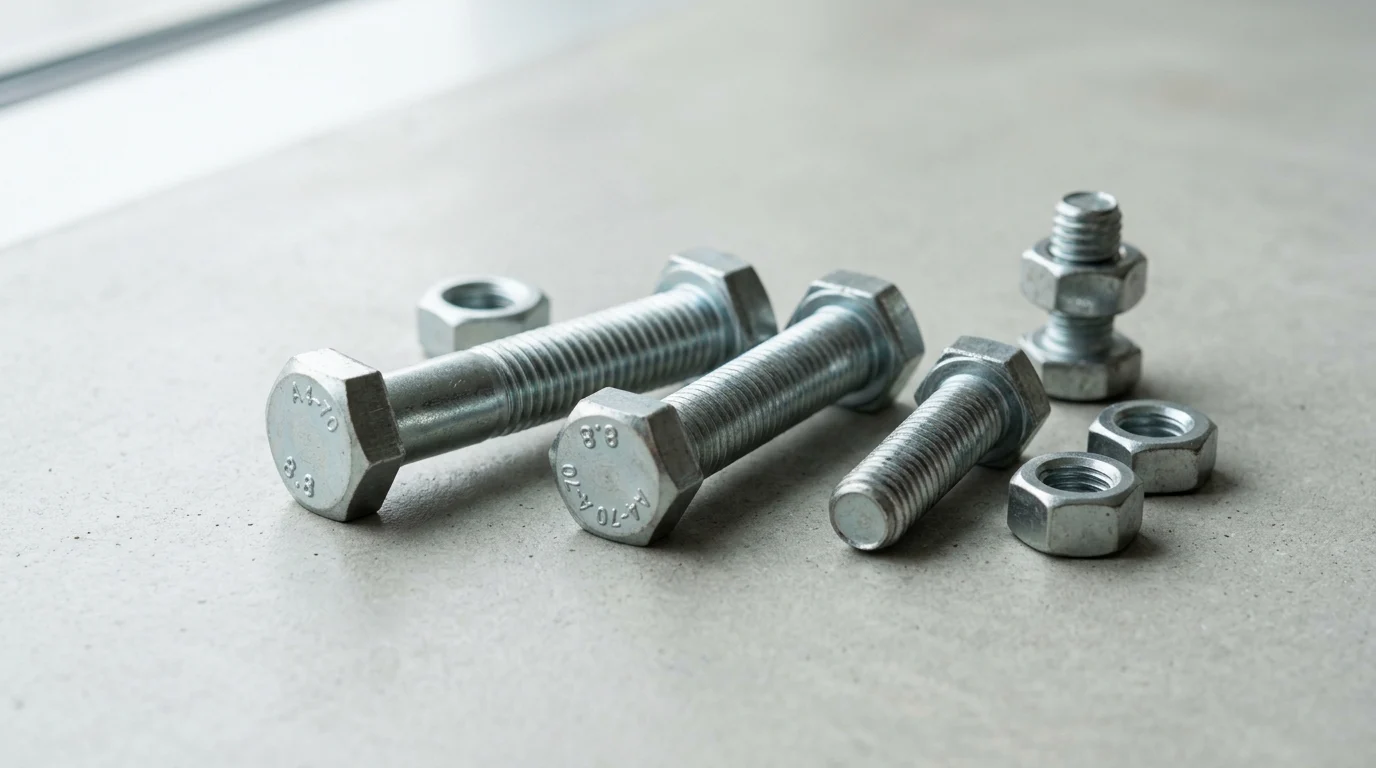

Why Fine vs. Coarse Thread Choice Matters
Specifying the correct threaded fastener is a foundational element of mechanical design that directly impacts the structural integrity, assembly efficiency, and lifecycle of a product. Among the most fundamental decisions engineers face is selecting between fine and coarse thread profiles for hex bolts. While both variations conform to standard dimensional geometries, their distinct pitch measurements create profoundly different mechanical behaviors under load.
The choice between fine and coarse threads is never strictly aesthetic or arbitrary; it relies on a rigorous evaluation of the joint's function. A single miscalculation in thread pitch can lead to catastrophic joint failure, accelerated fatigue, or severe maintenance bottlenecks. For example, substituting a standard coarse M12-1.75 bolt with a fine M12-1.25 bolt in a low-density aluminum engine block can increase the risk of thread stripping by over 15% due to the reduced shear area in the softer mating material. Understanding these nuanced interactions is essential for optimizing both performance and procurement.
Application demands and maintenance goals
The operational environment directly dictates the mechanical demands placed on bolted joints, making thread selection a critical factor in achieving long-term maintenance goals. Coarse threads feature a larger pitch—meaning fewer threads per axial inch or millimeter—which provides a deeper thread form. This robust geometry is highly tolerant of contamination, allowing coarse threads to function reliably in environments where dirt, dust, or metal shavings are present. Maintenance teams often prefer coarse threads because they are less prone to cross-threading during rapid, high-volume assembly or field repairs.
Conversely, fine threads offer a smaller pitch and a shallower thread depth, which translates to a higher number of threads engaged within the same axial length. This configuration allows for finer adjustment and greater torque-to-tension efficiency. In applications where maximum clamp load is required, fine thread fasteners can achieve up to 10% higher preload than their coarse counterparts for a given torque input. However, this precision comes at a maintenance cost: fine threads require clean environments and careful alignment, as even microscopic debris can cause the threads to bind or seize during installation.
Where each thread type is commonly used
Industry adoption of specific thread pitches typically follows historical reliability data and material constraints. Coarse threads are the universal default for general construction, heavy infrastructure, and structural steelwork. In these sectors, fasteners are frequently installed in less-than-ideal environmental conditions, and the mating materials (such as low-carbon steel or cast iron) provide sufficient shear strength to support the deeper coarse thread profile without stripping.
Fine threads dominate precision-critical sectors such as aerospace, motorsport, and high-performance automotive manufacturing. In these industries, the imperative to reduce weight leads to the use of thinner, high-strength materials where maximizing thread engagement is paramount. Furthermore, fine threads are extensively utilized in fluid power applications and pressurized systems, where the denser thread profile aids in creating more effective seals against leakage. The aerospace sector, for instance, relies almost exclusively on fine-pitch fasteners (such as UNF standards) to ensure maximum vibration resistance and tensile strength in flight-critical assemblies.
Key Differences Between Fine and Coarse Thread Hex Bolts
At a macroscopic level, the geometric variations between thread pitches appear minimal, yet they fundamentally alter the stress distribution and load-bearing capabilities of the fastener. The primary distinction lies in the thread pitch itself: the distance from the crest of one thread to the crest of the next. In the metric system, this is expressed directly in millimeters, whereas the imperial system counts the number of threads per inch (TPI).
Because the outer (major) diameter of the bolt remains constant regardless of the thread pitch, altering the pitch directly affects the minor diameter—the solid core of the bolt. This inverse relationship between thread depth and core diameter is the mechanical root of the performance differences between fine and coarse threaded fasteners. A shallower fine thread leaves a thicker solid core, while a deeper coarse thread carves more material away from the bolt's center.
Thread pitch, tensile stress area, and clamp load
Thread pitch directly influences the tensile stress area (TSA), which is the critical cross-sectional area that determines a bolt's ultimate tensile strength. Because fine threads are shallower, the minor diameter of a fine thread bolt is larger than that of a coarse thread bolt of the same major diameter. This larger core yields a greater TSA, granting fine thread bolts approximately 5% to 10% more tensile and yield strength. Consequently, fine threads can support higher safe working loads and generate superior clamp loads.
To illustrate this structural advantage, consider the standard specifications for an M10 bolt. The coarse variant (M10-1.5) has a TSA of approximately 58.0 mm², whereas the fine variant (M10-1.25) boasts a TSA of roughly 61.2 mm², and the extra-fine variant (M10-1.0) reaches 64.5 mm². This quantifiable increase in cross-sectional area directly correlates to higher load-carrying capacity before the onset of plastic deformation.
| Bolt Size (Metric) | Thread Type | Pitch (mm) | Tensile Stress Area (mm²) | Relative Strength Gain |
|---|---|---|---|---|
| M10 | Coarse | 1.50 | 58.0 | Base |
| M10 | Fine | 1.25 | 61.2 | + 5.5% |
| M10 | Extra Fine | 1.00 | 64.5 | + 11.2% |
| M12 | Coarse | 1.75 | 84.3 | Base |
| M12 | Fine | 1.25 | 92.1 | + 9.2% |
Vibration resistance, galling, and installation behavior
Vibration-induced loosening is a primary mode of joint failure in dynamic mechanical systems. Fine threads inherently resist loosening better than coarse threads due to their smaller helix angle. The shallower incline of the fine thread functions like a gentler wedge, requiring significantly more vibrational energy to cause the nut to back off the bolt. This makes fine threads highly desirable in assemblies subjected to continuous harmonic or transverse vibrations.
However, the tighter clearances and increased surface area contact of fine threads introduce a heightened risk of galling—a form of cold welding that occurs during installation. This risk is particularly acute when using stainless steel fasteners; unlubricated 316 stainless steel fine threads exhibit a 15% to 20% higher incidence of galling compared to coarse threads. Additionally, coarse threads offer superior installation behavior in high-volume settings. Their larger pitch means they require fewer rotations to achieve full engagement, accelerating assembly line rundown speeds and reducing the likelihood of cross-threading when components are misaligned.
How to Choose the Right Thread Type
Engineers must evaluate a complex matrix of operational variables to determine the optimal thread pitch for a specific application. Relying strictly on the tensile strength advantages of fine threads can lead to catastrophic failures if the mating material or environmental conditions are not properly accounted for. The selection process requires balancing the internal stresses of the joint against the external forces acting upon the machinery.
A critical rule of thumb in mechanical design dictates that the strength of the fastener should be matched to the shear strength of the tapped hole. If the thread type is chosen incorrectly, the joint may fail not by the bolt breaking, but by the internal threads stripping out entirely. This failure mode is notoriously difficult and expensive to repair, often requiring thread inserts or complete component replacement.
Operating conditions: vibration, dynamic load, and engagement length
Dynamic loading and high-frequency vibration necessitate specific thread engagement strategies. As a general engineering standard, coarse threads require a minimum thread engagement length equal to 1D (one times the nominal diameter of the bolt) when threading into steel to ensure the bolt will yield before the threads strip. Because coarse threads have a larger shear area per thread, they are highly effective in softer materials like cast iron, aluminum, and plastics, where engagement lengths might be extended to 1.5D or 2D.
Fine threads, while requiring a slightly shorter engagement length to achieve full tensile strength in hard materials, are highly susceptible to stripping in softer alloys. When operational conditions involve high-frequency vibrations (typically exceeding 50 Hz), the self-locking tendency of the fine thread's shallow helix angle becomes a critical defense mechanism against loosening. However, if the joint experiences heavy shock loads or thermal cycling that causes significant expansion and contraction, coarse threads often provide better fatigue resistance because their deeper roots are less sensitive to stress concentrations.
Typical use cases in automotive and heavy equipment
In the automotive sector, fine threads are heavily utilized in suspension systems, braking components, and engine assemblies. For instance, connecting rod bolts and cylinder head bolts are almost exclusively fine thread (often Grade 10.9 or 12.9). These applications demand precise torque-to-yield characteristics and maximum clamp load within highly confined spaces. The fine pitch allows mechanics to achieve exacting preload targets, ensuring that the extreme cyclical pressures of internal combustion do not compromise the gasket seal.
Conversely, heavy equipment manufacturing—encompassing agricultural tractors, mining excavators, and construction machinery—relies predominantly on coarse threads (typically Grade 8.8 or 10.9). These machines operate in brutal environments where components are routinely exposed to mud, grit, and extreme weather. Coarse threads are essential here because they can tolerate particulate contamination larger than 0.5mm without jamming. Furthermore, the field maintenance of heavy equipment often occurs under suboptimal conditions; coarse threads facilitate faster, more reliable reassembly when technicians are working with heavy pneumatic tools in the dirt.
Sourcing, Standards, and Quality Checks
Beyond mechanical performance, procurement realities heavily influence fastener selection. Designing a product around a highly specialized thread pitch can create severe supply chain bottlenecks, driving up manufacturing costs and delaying production schedules. Fastener availability is governed by strict international standards that dictate not only the geometric tolerances of the threads but also the logistical frameworks of global distributors.
Quality assurance teams must implement rigorous inspection protocols based on the chosen thread type. The tighter tolerances of fine threads demand more precise manufacturing and finishing processes, increasing the likelihood of rejection during quality control if dimensional standards are not perfectly met. Understanding the intersection of engineering standards and supply chain dynamics is vital for cost-effective production.
Relevant specifications and dimensional standards
Global dimensional standards ensure interoperability and baseline performance metrics across manufacturers. In the imperial system, the ASME B1.1 standard governs the Unified Thread Standard, categorizing fasteners primarily into Unified National Coarse (UNC) and Unified National Fine (UNF). For metric fasteners, ISO 261 and ISO 965 dictate the profile and tolerance classes. Metric threads are typically specified with a tolerance class such as 6g for external threads (bolts) and 6H for internal threads (nuts).
Adherence to these specifications is verified using thread plug and ring gauges. Quality checks for fine threads are notably more stringent. Because the thread depth is shallower, a minor deviation in the pitch diameter can significantly compromise the thread engagement percentage. A deviation of just 0.05mm in the pitch diameter of a fine thread bolt can reduce its load-bearing capacity by a disproportionate margin compared to the same deviation in a coarse thread, making dimensional compliance a high-stakes requirement for quality control departments.
Availability, lead times, plating, and order quantities
Supply chain dynamics distinctly favor standard coarse threads, which are manufactured in massive volumes and stocked globally. Coarse thread hex bolts are considered off-the-shelf commodities, boasting lead times of just 1 to 2 days for standard grades and finishes. In contrast, fine thread fasteners—particularly in larger diameters or specific lengths—often require custom production runs. Manufacturers typically impose Minimum Order Quantities (MOQs) ranging from 10,000 to 50,000 pieces for non-standard fine pitch bolts, accompanied by extended lead times of 8 to 12 weeks.
Surface plating and finishing processes also complicate the sourcing of fine thread bolts. Anti-corrosion treatments, such as electro-galvanized zinc, add a measurable thickness to the fastener's surface. A standard zinc plating process deposits a layer of 5 to 8 microns. While coarse threads easily accommodate this buildup within their standard clearance tolerances, the tighter fit of fine threads can result in interference during assembly if the plating thickness is not strictly controlled or if an undersized pre-plate tolerance was not specified during ordering.
Which Thread Type Is Better for Your Application
Finalizing the selection requires a holistic view of the product's entire lifecycle, balancing immediate mechanical requirements against long-term economic impacts. There is no universally superior thread type; rather, there is an optimal thread type for a specific set of constraints. Engineers and procurement officers must collaborate to avoid over-engineering joints, which inflates costs without delivering tangible performance benefits.
The decision ultimately hinges on a calculated risk assessment. Choosing a coarse thread prioritizes assembly speed, material compatibility, and supply chain resilience. Opting for a fine thread prioritizes tensile strength, vibration resistance, and precision adjustment. By systematically evaluating the application against these parameters, manufacturers can standardize their fastener usage, reducing inventory complexity and ensuring reliable field performance.
A step-by-step selection process
A systematic approach to fastener selection begins with analyzing the mating material. If the bolt is threading into a low-tensile material such as cast iron, brass, or aluminum alloys, coarse threads are mandatory to prevent stripping the internal threads. If the joint utilizes a nut and bolt configuration in high-strength steel, the designer can safely evaluate both options. The next step is assessing the vibration profile. If the assembly is subjected to continuous dynamic loads or frequencies that historically induce loosening, fine threads should be prioritized.
The final technical consideration is the required clamp load versus the available space. If a joint requires a shear strength exceeding 800 MPa but spatial constraints prohibit the use of a larger diameter bolt, transitioning from a coarse to a fine pitch within the same diameter can provide the necessary strength increase. This step-by-step evaluation ensures that the mechanical foundation of the joint is secure before factoring in the economic and logistical variables.
Balancing price, assembly efficiency, and lifecycle cost
Procurement cost is only one component of the total lifecycle expense of a bolted joint. At the purchasing level, fine thread fasteners typically carry a 15% to 25% price premium over equivalent coarse thread bolts due to lower production economies of scale and higher tooling wear during the thread rolling process. However, in high-vibration environments, this initial premium is easily offset by the prevention of joint failure, which can incur massive warranty claims and downtime costs.
Conversely, coarse threads deliver significant savings on the assembly line. The larger pitch allows for roughly 30% faster rundown speeds on automated pneumatic or electric fastening tools, directly increasing manufacturing throughput. Furthermore, the reduced risk of cross-threading minimizes rework and scrap rates.
| Selection Factor | Coarse Thread | Fine Thread | Primary Cost Impact |
|---|---|---|---|
| Initial Purchase Price | Baseline Cost | + 15% to 25% Premium | Procurement Budget |
| Automated Assembly Speed | Fast (fewer rotations) | Slower (more rotations) | Labor / Throughput |
| Cross-threading Risk | Low (< 1% defect rate) | Moderate (~3% defect rate) | Assembly Rework |
| Vibration Loosening Risk | Higher (requires locknuts) | Lower (inherent locking) | Warranty / Maintenance |
Key Takeaways
- The most important conclusions and rationale for Hex Bolts
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
When should I choose coarse thread hex bolts?
Use coarse thread hex bolts for general construction, field repairs, softer materials, and dirty environments where faster assembly and lower cross-threading risk matter most.
When are fine thread hex bolts the better option?
Choose fine thread hex bolts for precision assemblies, higher clamp load, vibration-sensitive joints, and thinner high-strength materials like those used in automotive or aerospace applications.
Are fine thread hex bolts stronger than coarse thread ones?
Often in tension, yes. Fine threads usually have a larger tensile stress area and can deliver higher preload at the same torque, but joint material and application still decide overall strength.
Why are coarse threads preferred in softer materials?
Their deeper thread profile provides better resistance to stripping in materials like aluminum or cast iron, especially when service conditions are rough or installation is less controlled.
Can I replace a coarse thread hex bolt with a fine thread bolt?
No. Thread pitch must match the nut or tapped hole exactly. Substituting fine for coarse can damage threads, reduce reliability, and create unsafe clamp loads.
