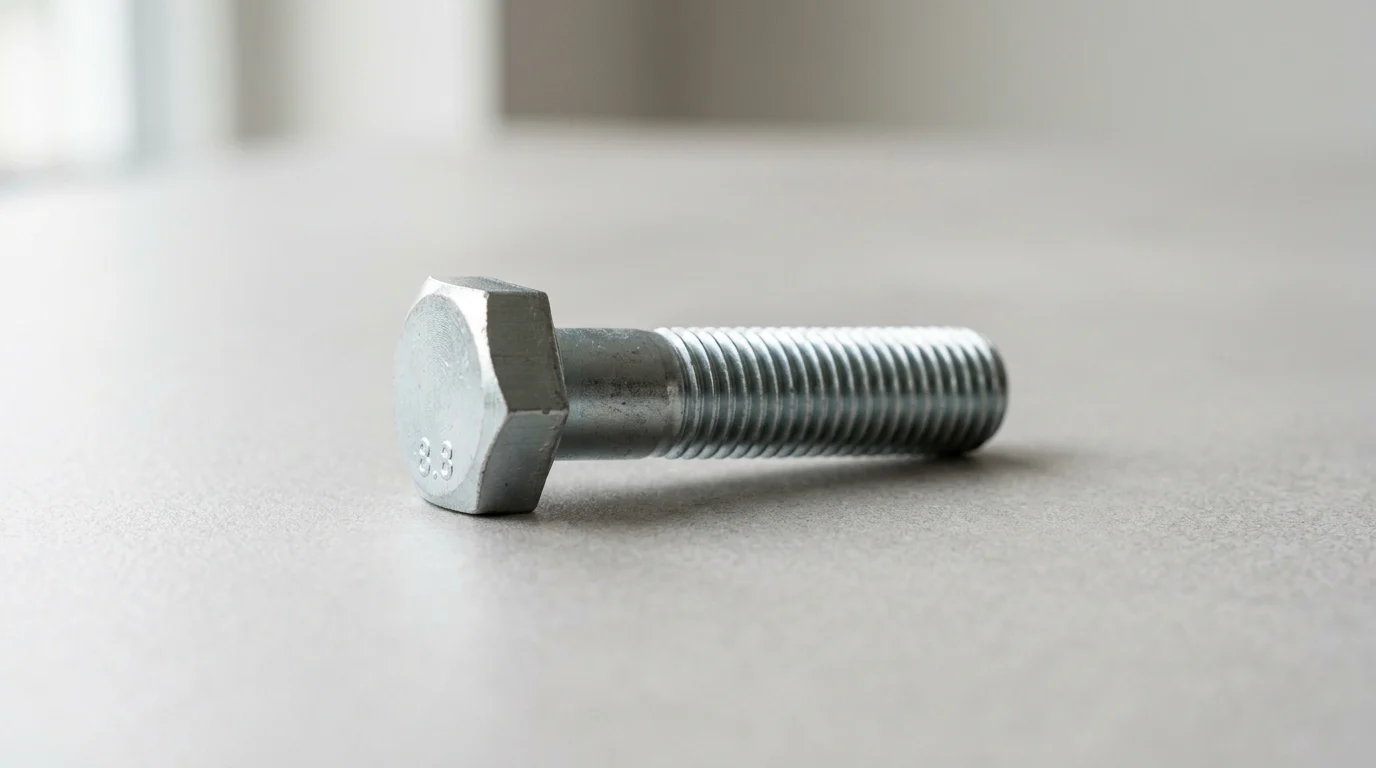

How to Check Hex Bolt Hardness Properly

Introduction

Hardness testing is one of the fastest ways to confirm whether a hex bolt has the strength and heat-treatment condition its grade requires. Because hardness is closely tied to tensile performance and brittleness, a result that falls outside the specified range can signal risks such as premature stretching, poor clamp load, or sudden fracture in service. This article explains how to check hex bolt hardness properly, including suitable test methods, where and how measurements should be taken, and how to interpret the results against relevant standards so you can judge bolt quality with confidence.

Why Hex Bolt Hardness Verification Matters

Verifying the hardness of threaded fasteners is a fundamental requirement in industrial engineering and quality assurance. Hardness serves as the primary non-destructive indicator of a fastener’s mechanical capabilities, directly correlating with its ultimate tensile strength and yield strength. When engineers specify a Hex Bolt for a structural application, they rely on precise material properties to ensure the joint can withstand anticipated static and dynamic loads without yielding or fracturing.

Without rigorous hardness verification, manufacturers and end-users operate blindly, assuming that the thermal processing of the steel was successful. A fastener that deviates from its specified hardness band poses a severe threat to operational safety. If the material is too soft, the bolt will stretch prematurely under tension; if it is too hard, it becomes brittle and highly vulnerable to sudden, catastrophic failure mechanisms.

Effects on joint reliability

The reliability of any bolted joint depends heavily on maintaining an accurate and consistent clamping force. When a bolt is tightened, it acts like a stiff spring, stretching slightly to generate preload. A standard Class 10.9 metric bolt, for example, is engineered to provide a minimum tensile strength of 1040 MPa and a minimum yield strength of 940 MPa. Achieving these exact mechanical properties requires the steel to maintain a strict hardness range, typically between 32 and 39 HRC (Rockwell C).

If the hardness falls below 32 HRC, the bolt's yield point drops. During installation, the applied torque may cause the bolt to plastically deform rather than elastically stretch, resulting in a total loss of clamp load and leaving the joint susceptible to vibration loosening and fatigue shear. Conversely, if the hardness exceeds 39 HRC, the bolt cannot absorb impact energy effectively, shifting the failure mode from predictable yielding to unpredictable brittle snapping.

High-risk industries and service conditions

The stakes of hardness verification are exponentially higher in industries operating under extreme service conditions, such as aerospace, heavy construction, petrochemical refining, and offshore energy production. In these sectors, environmental factors interact with material properties to create complex failure mechanisms. High-risk applications demand absolute certainty that fastener metallurgy aligns with engineering blueprints.

Hydrogen embrittlement is a primary concern in these demanding environments. Fasteners with a hardness exceeding 39 HRC (approximately 380 HV) are highly susceptible to absorbing atomic hydrogen during electroplating processes or from corrosive service environments, such as subsea oil rigs. Once hydrogen permeates the steel matrix of an overly hard bolt, it migrates to areas of high stress concentration—like the thread roots—causing delayed brittle fracture hours or even months after installation.

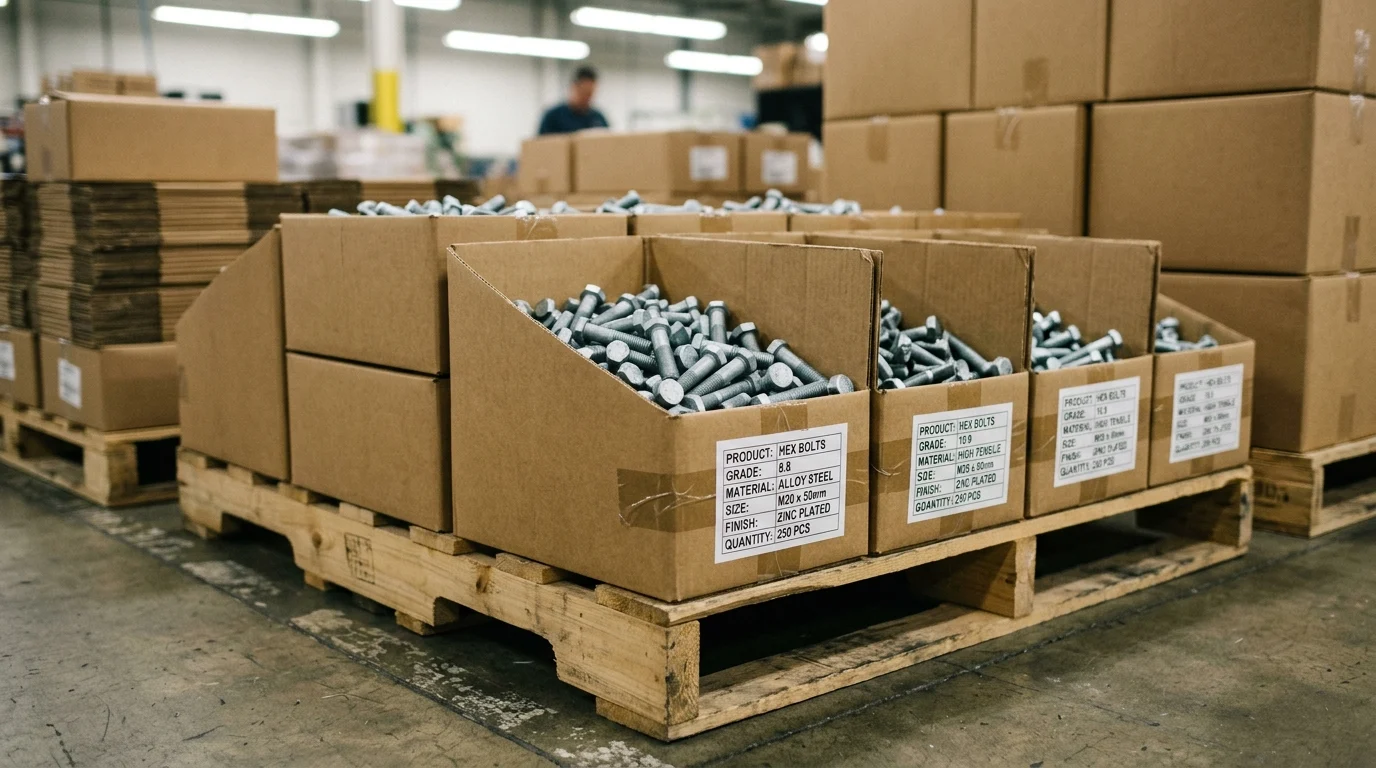

Standards, Grades, and Material Factors

The acceptable hardness parameters for industrial fasteners are not arbitrary; they are strictly governed by international consensus standards. These frameworks ensure global uniformity, allowing engineers to confidently source a Hex Bolt from any certified manufacturer and expect identical baseline performance. Understanding these standards is the first step in executing a compliant quality control protocol.

Grading systems define the relationship between chemical composition, thermal history, and final mechanical output. By categorizing fasteners into specific classes or grades, standards bodies provide clear, quantifiable targets for metallurgical testing, establishing both the minimum threshold required for load-bearing and the maximum ceiling required to preserve material toughness.

Grade, material, and heat treatment effects

The final hardness of a steel fastener is dictated by its carbon content, the presence of alloying elements like chromium, molybdenum, or boron, and the precise execution of heat treatment. Medium-carbon steels must be heated above their critical temperature to form austenite, then rapidly quenched in oil or water to create martensite—a highly hard but brittle microstructure.

To achieve the necessary balance of strength and ductility, the quenched bolts are subsequently tempered. Standards typically mandate a minimum tempering temperature, often around 425°C (800°F) for high-strength grades. If the tempering temperature is too low, the bolt retains excessive hardness and internal stress. If it is too high, the martensitic structure softens beyond acceptable limits, reducing the bolt's load-carrying capacity.

Applicable hardness standards and test methods

The primary normative documents governing fastener hardness include ISO 898-1 for metric bolts and ASTM F3125, ASTM F606, and SAE J429 for imperial sizes. These standards dictate not only the acceptable hardness ranges but also the approved methodologies for conducting the tests, ensuring consistency across different testing laboratories and manufacturing facilities.

ISO 898-1, for instance, specifies that hardness testing must be conducted on a properly prepared surface, often requiring cross-sectioning to measure core hardness. The standards universally recognize Rockwell and Vickers as the primary scales for high-strength steel fasteners, though Brinell is permitted for certain large-diameter applications. Strict adherence to the testing locations specified in these standards is mandatory to avoid measuring localized surface anomalies.

How to compare hardness results

Comparing hardness results requires an understanding of how different testing scales operate. While conversion tables—such as those found in ASTM E140—allow quality inspectors to translate a Vickers reading into a Rockwell C equivalent, these conversions are mathematically derived approximations, not exact equivalents. Material composition and strain-hardening behaviors can cause slight discrepancies when converting between scales.

When disputes arise between a supplier and a buyer, the standard explicitly specifies which scale serves as the final referee method. Below is a comparative overview of common fastener grades, their governing standards, and their mandatory hardness and tensile requirements.

How to Check Hex Bolt Hardness Properly

Executing a hardness test on a Hex Bolt requires strict adherence to standardized laboratory procedures. A haphazard test conducted on an unprepared surface or with an uncalibrated machine will yield erroneous data, potentially leading to the false acceptance of defective parts or the costly rejection of compliant ones.

Proper testing methodology encompasses everything from the initial selection of the sample batch to the precise physical preparation of the testing surface. Quality technicians must understand the mechanics of the testing equipment and the physical properties of the fastener to ensure the indenter interacts with the true base metal.

Pre-test checks, sampling, and surface preparation

The accuracy of any hardness reading is fundamentally dependent on surface preparation. Fasteners are often coated with zinc, hot-dip galvanized, or treated with anti-corrosion phosphates. These surface layers are entirely different in hardness from the underlying steel and must be completely removed. Testing directly through a 50-micron zinc plating will absorb the indenter's force, yielding an artificially low reading.

Furthermore, the steel itself may suffer from surface decarburization—a loss of carbon during heat treatment that leaves a soft outer skin. To measure the true core hardness, technicians must grind or machine a flat surface on the bolt head or threaded end, typically removing at least 0.38 mm (0.015 inches) of material. The prepared surface must be perfectly flat, parallel to the testing anvil, and polished to a specific finish to prevent the indenter from deflecting or slipping.

When to use Rockwell, Vickers, or Brinell

Selecting the appropriate hardness scale depends on the size, grade, and specific metallurgical characteristics being evaluated. The Rockwell C scale (HRC), utilizing a 150 kgf load and a diamond cone indenter, is the industry standard for medium to high-strength fasteners (typically those above 20 HRC). For softer, low-carbon bolts or austenitic stainless steel fasteners, the Rockwell B scale (HRB), which uses a 100 kgf load and a 1/16-inch steel ball, is more appropriate.

Microhardness testing using the Vickers scale (HV) is critical when evaluating surface conditions, such as measuring the exact depth of a decarburized layer or confirming the presence of case hardening. Vickers uses a much lighter load (often 10 to 50 kgf for macro, and under 1 kgf for micro) and a diamond pyramid indenter, allowing for precise readings on very small cross-sections. The Brinell scale (HBW) is generally reserved for very large structural bolts where a massive 3000 kgf load and a 10mm tungsten carbide ball provide a wide, averaged reading across a coarse microstructure.

How to document and verify results

Documentation is a critical component of the verification process, serving as the official record of compliance for traceability and liability purposes. A proper hardness report must detail the specific test method used (e.g., ASTM F606), the applied scale and load, the exact location on the fastener where the test was conducted (such as mid-radius of a cross-section), and the environmental conditions of the laboratory.

Because steel microstructures can exhibit slight localized variations, a single hardness reading is never sufficient. Technicians must take an average of at least three indentations per sample to establish a reliable mean value. These readings must be spaced adequately apart—standards dictate that the distance between the centers of two adjacent indentations must be at least three times the diameter of the indentation itself to prevent strain-field overlap.

Common Hardness Testing Mistakes

Even with sophisticated, calibrated equipment, human error and procedural oversights frequently distort hardness readings. Recognizing and eliminating these common testing pitfalls is essential for quality assurance personnel tasked with evaluating fastener integrity and preventing catastrophic field failures.

Many errors stem from a misunderstanding of how fastener geometry and surface metallurgy interact with the testing indenter. When technicians treat a complex threaded component like a simple flat block of steel, the resulting data will inevitably misrepresent the material's true mechanical limits.

Effects of decarburization, plating, and thread geometry

Testing directly on the curved surface of a Hex Bolt shank or, worse, on the threads themselves, is a critical procedural error. The lack of a stable, flat surface causes the bolt to shift or deflect microscopically under the massive load of the indenter, resulting in readings that are artificially low. A specialized V-anvil must be used if testing on a cylindrical shank, though flat preparation is always preferred.

Decarburization and plating also heavily skew results. If a bolt has a decarburized zone extending 0.15 mm into the surface, and the technician only grinds away 0.05 mm before testing, the diamond indenter will penetrate this soft carbon-depleted layer, falsely indicating that the entire bolt has failed to reach the required strength. Conversely, testing on a carburized (case-hardened) surface without reaching the core will falsely indicate that a brittle, non-compliant bolt is exceptionally strong.

Calibration, technique, and sampling errors

Calibration neglect is an invisible but pervasive threat in metallurgical labs. Hardness testers must be verified daily using certified reference blocks that closely match the expected hardness of the bolts being tested. If a machine drifts out of calibration by just +/- 1.0 HRC, it can easily push a borderline Class 10.9 bolt (e.g., measuring 31.5 HRC against a 32 HRC minimum) into a false passing or failing status, triggering massive supply chain disruptions.

Operator technique and sampling errors further compound calibration issues. Applying the minor load too quickly or aggressively can cause the indenter to bite too deeply before the measurement zero-point is established. Additionally, edge-effect errors occur when a technician places an indentation too close to the edge of the bolt cross-section; the lack of surrounding supporting material allows the metal to flow outward, yielding a soft reading. Standards strictly require indentations to be placed at least 2.5 times the indentation diameter away from any edge.

Using Hardness Results for Acceptance Decisions

Hardness data is not merely a theoretical laboratory metric; it is a primary driver for supply chain acceptance, supplier auditing, and overarching risk mitigation. Integrating these metallurgical results into a formal quality management system ensures that every batch of fasteners meets the stringent demands of modern engineering.

Quality teams must translate raw Rockwell or Vickers numbers into actionable procurement decisions. This requires establishing clear, mathematically sound protocols for interpreting data, managing non-conformances, and communicating expectations to fastener manufacturers and distributors.

When results support acceptance or rejection

Because hardness acts as a highly reliable, non-destructive proxy for ultimate tensile strength, it forms the basis of lot acceptance. If a statistical sample of a Hex Bolt batch tests consistently within the specified HRC or HV band, the data heavily supports full lot acceptance, provided that dimensional tolerances, thread gauging, and visual inspections are also compliant.

However, if hardness readings fall below the minimum allowable threshold, the batch must be immediately quarantined. Soft bolts may be subjected to full-scale destructive tensile testing to definitively confirm if their mechanical limits have been compromised. Conversely, readings that exceed the maximum hardness limit mandate outright rejection with no room for compromise, as the exponential increase in hydrogen embrittlement susceptibility cannot be mitigated through standard tensile tests.

How buyers and quality teams can build a practical process

Buyers and quality assurance managers must build a practical, repeatable verification process based on recognized statistical sampling plans. Utilizing frameworks like ISO 3269 or ANSI/ASQ Z1.4 allows organizations to determine exactly how many bolts to test based on the total lot size. For instance, operating under an Acceptable Quality Limit (AQL) of 1.5 for major mechanical defects might dictate extracting and testing 13 random samples from a production run of 10,000 pieces.

To prevent supply chain bottlenecks, this process must also include predefined protocols for dispute resolution. If incoming inspection yields failing Rockwell results, the procedure should outline a secondary verification step, such as cross-sectioning the fastener for a rigorous microhardness profile using the Vickers scale. By establishing these technical parameters in the initial purchase order, buyers ensure that suppliers are held to an unambiguous standard of metallurgical excellence.

Key Takeaways

• The most important conclusions and rationale for Hex Bolt
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

Why should a hex bolt’s hardness be checked before use?

It confirms the bolt matches its strength class. A bolt that is too soft can lose clamp load; too hard can become brittle and fail unexpectedly.

What hardness range is typical for a Class 10.9 hex bolt?

A common target is about 32–39 HRC. Always verify the exact requirement against the applicable drawing, ISO 898-1, or supplier certification.

Which hardness test is commonly used for hex bolts?

Rockwell C is widely used for hardened steel bolts. Vickers may be used for smaller sections or when a more precise indentation method is needed.

Where on a hex bolt should hardness be tested?

Test on a clean, prepared surface, usually the head or a sectioned sample, following the standard method. Avoid coated, decarburized, or irregular surfaces that can distort results.

What does it mean if a hex bolt tests above the specified hardness?

It may indicate over-hardening, raising brittleness and hydrogen embrittlement risk, especially after plating. Quarantine the lot and review heat treatment and coating records.
